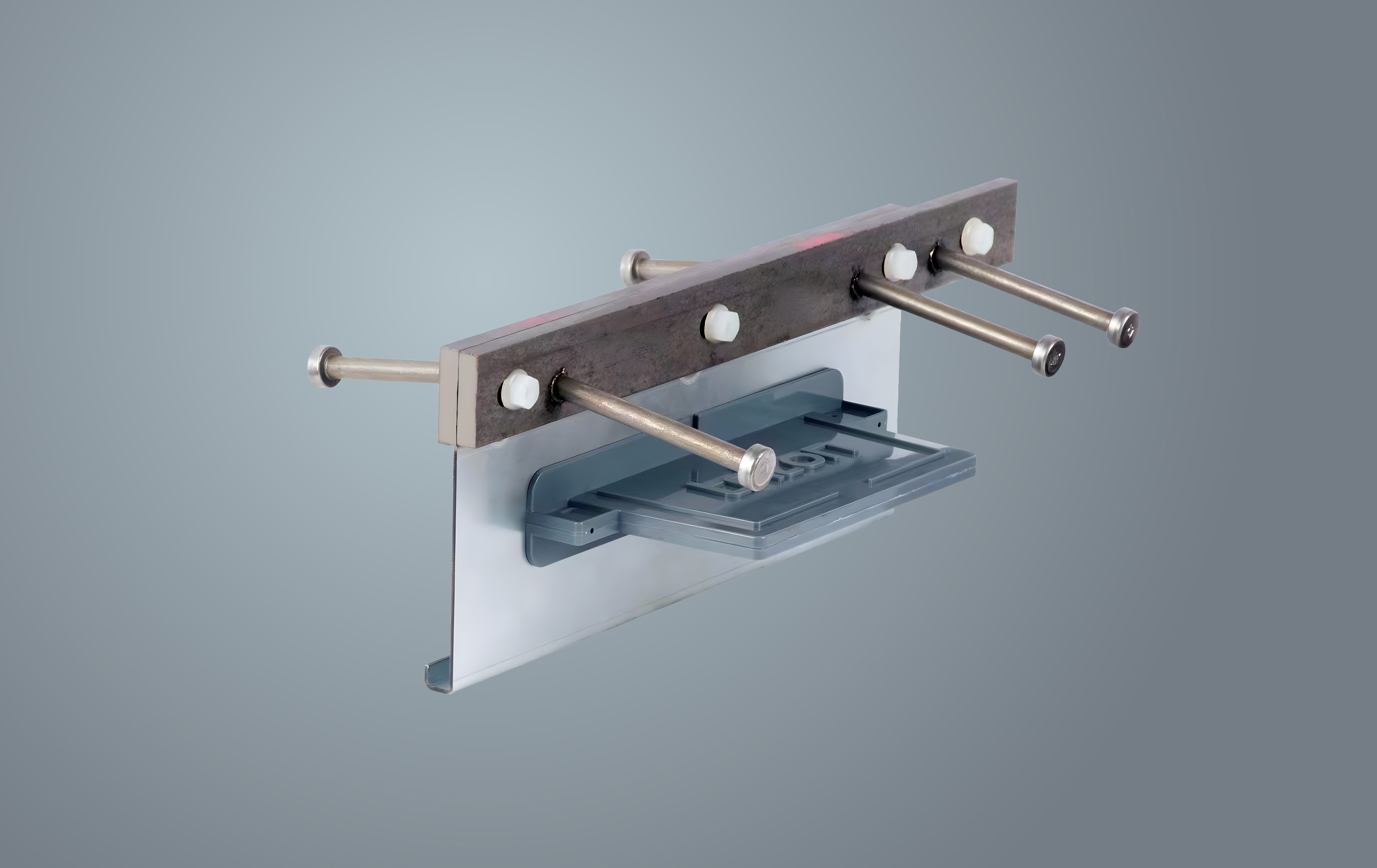

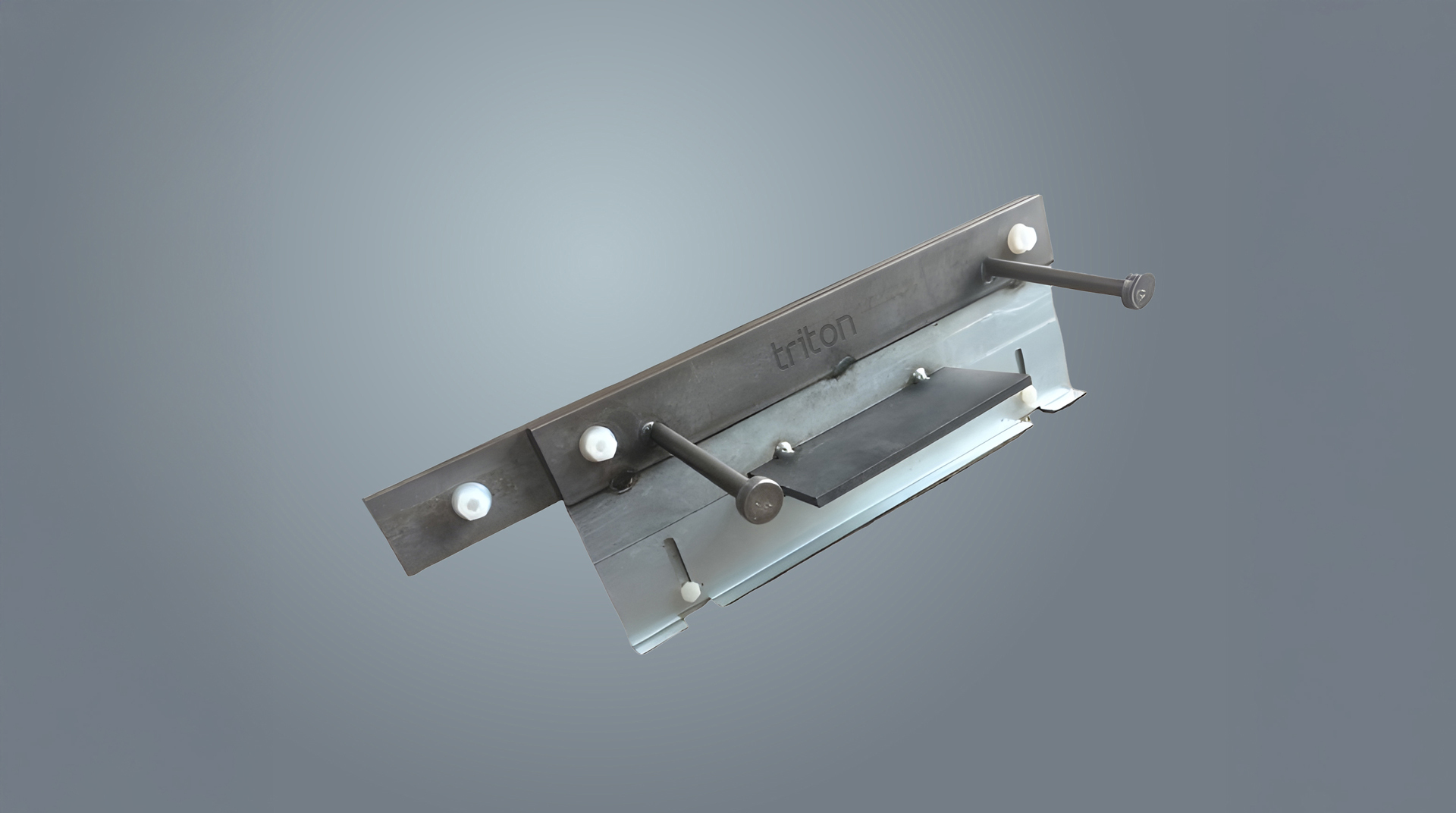

The TRITON – STRAIGHT is a robust, height-adjustable, permanently embedded, steel-reinforced expansion joint system. It ensures efficient load transfer between adjacent concrete slabs while protecting slab edges from damage and long-term deterioration.
Steel plates 40x10mm: protect slab edges from damage
Plastic breakable screws: keep top plates aligned during installation
Steel struts 100x10mm: securely anchor the system into the concrete slab
Steel dowel plate 145x145x6mm: ensures optimal load transfer across joints
2mm steel formwork plate: available in multiple heights, also adjustable
Key Features
Adjustable design for varying slab thicknesses
Strong edge protection against impact and wear Efficient structural load transfer
Fast and simple installation
Available in black, galvanised, or stainless steel
Perfect for industrial floor slabs, warehouses, logistics centres, mezzanines, exposed slab edges, and heavy-duty commercial areas.
Specifications
Load capacity (kN/m) depends on dowel density along the joint. Upon request, Triton provides ultimate load values for specific failure modes, including tensile rupture of the concrete matrix and flexural failure of dowel elements, defined for a given joint opening width.
